Nardi K250-4 Pro 3PT Vacuum Planters

NARDI 'K' SERIES SPECIFICATIONS
MODEL	K250-4	K410-6	K470-7	K570-8	K860-12
Qty. Row Units @ 30" Spacing	4	6	7	8	12
Min./Max. Spacing	18" to 8'-0"+
Note:	Row Spacing Can Be Increased By Locking Out Individual Row Units
Tool Bar Width (Overall Machine)	8'-2"	13'-5"	15'-5"	18'-8"	28'-3"
Note:	Above Dimensions Based on 30" Rows - Narrower and Wider Row Spacing Available
Seed Hopper Capacity	1.56 Bushels
Weight, lb's	2,194	2,811	3,109	3,858	6,195
Tractor HP Range	50-150HP	70-150HP	85-150HP	95-175HP	160-250HP
Weights are Less Pallets, Crates & PTO Shaft.

CORN, BEANS, GRASSES (NON-WARM SEASON)

FLOWER SEEDS: Ammi Majus, (Bishops FLower/Queen Anne's Lace), Bachelor Button, Begonia, Big Blue Salvia, Calendula Seeds, Calibrachoa Kabloom, Carnation, Castor Bean, Columbine, Coneflower, Cosmos, Cotton, Daisy, Four O'Clock, Gypsophila, (Baby's Breath), Hyacinth Bean, Impatien, Larkspur, Lavender, Milkweed, Nasturtium, Poppy, Sweet Pea, Sweet Alyssum, Zenia, Black Eyed Susan, Marigold, Morning Glory, Moss Rose (Portulaca, Purslane), Petunia, Shasta Daisy, Sunflower, Sweet Aslyssu, Texas Blue Bonnet.

HEMP SEEDS

HERBS: Allspice, Anise, Basil, Bay Leaf, Cardamom, Cilantro, Cinnamon, Clove, Coriander, Cumin, Dill, Ginger, Lavender, Marjoram, Mint, Oregano, Parsley, Pepper, Rosemary, Sage, Terragon, Thyme, Vanilla.

PRODUCE (Larger) & LEGUME SEEDS: Beans, Cantelope, Corn, Honeydew Melon, Melons, Peas, Pumpkin, Rice, Soybean, Squash, Sunflowers, Watermelon.

PRODUCE SEEDS (Smaller): Arugula, Asparagus, Basil, Bay Leaf, Beet, Broccoli, Cauliflower, Cabbage, Carrot, Celery, Cilantro, Collard, Coriander, Cucumber, Dill, Eggplant, Ginger, Green Onion, Gourd, Kale, Leek, Mint, Mustard, Okra, Onion, Oregano, Parsley, Pepper, Radish, Rosemary.

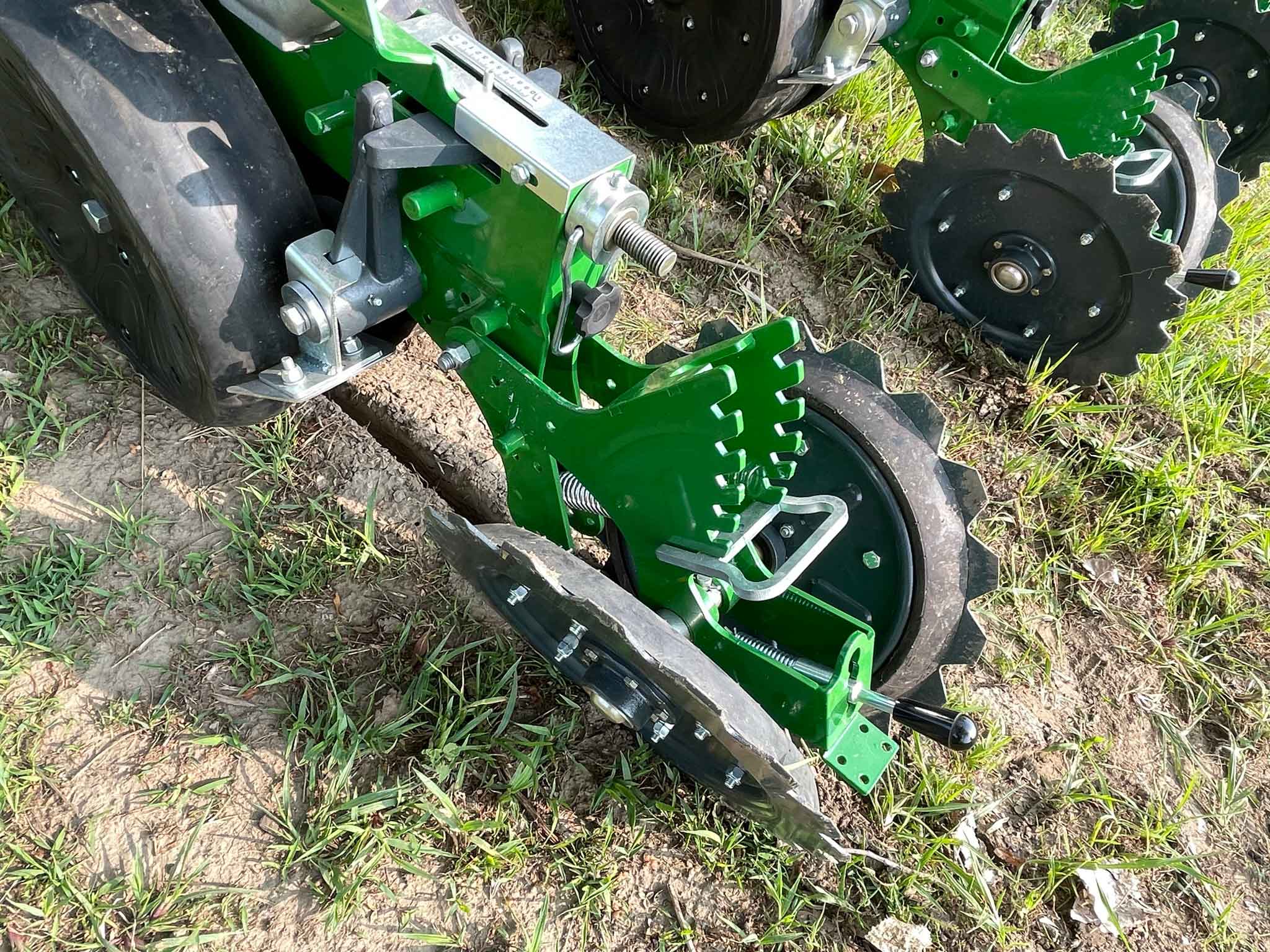

Perfect Seed Opening Trench, Closed Perfectly with Moderate Compaction via Nardi's Adjustable Closing Disc's.

SPECIFICATION TABLE, SEED PLATES & PLANTER DETAILS:

LIST OF AVAILABLE SEED PLATES

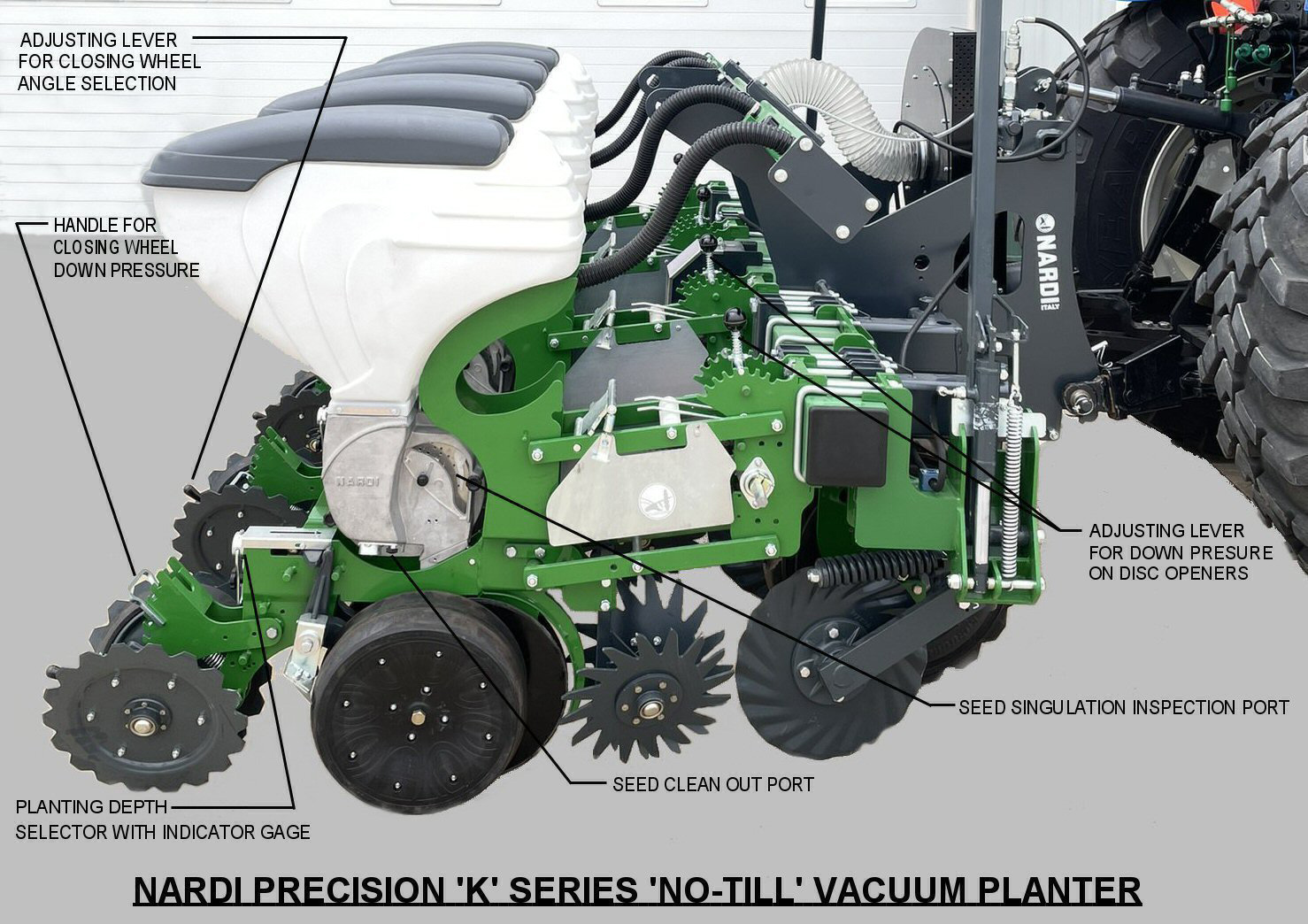

PLANTER DETAILS
